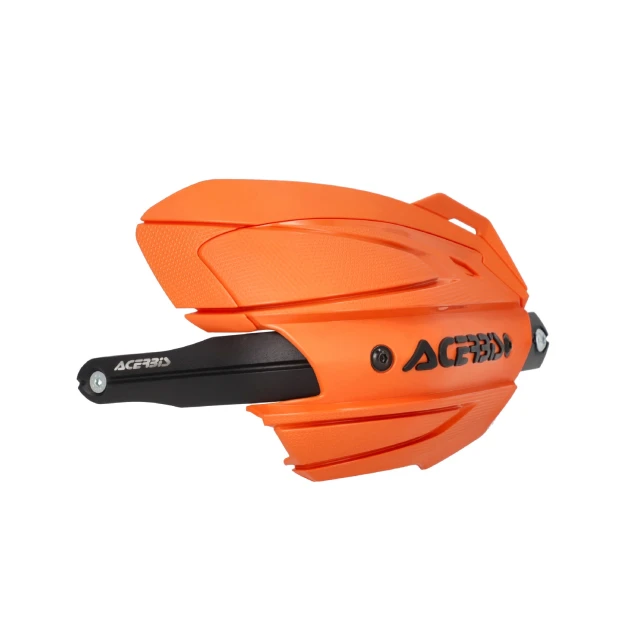

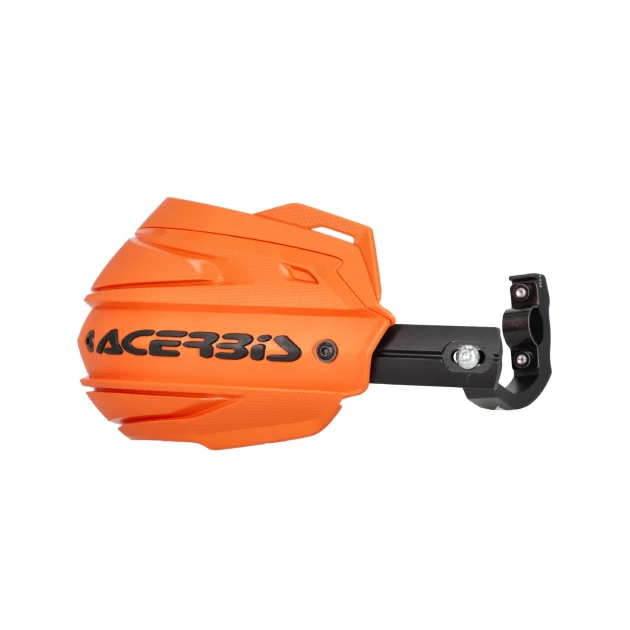

Handguards ADV Acerbis for HONDA CRF300L

ACERBIS ADV TYPE B HANDGUARDS FOR HONDA CRF300L

The Honda CRF300L is equally suited to paved roads, gravel and trails, and Acerbis ADV Type B handguards are designed for that same mixed-use environment. Their closed construction combines a strong aluminium backbone around the control levers with a large plastic shield in front of the rider’s hands.

Compared with a simple open deflector, the wrap-around system provides structural protection around the controls while also helping reduce exposure to wind, branches, stones, mud and other debris.

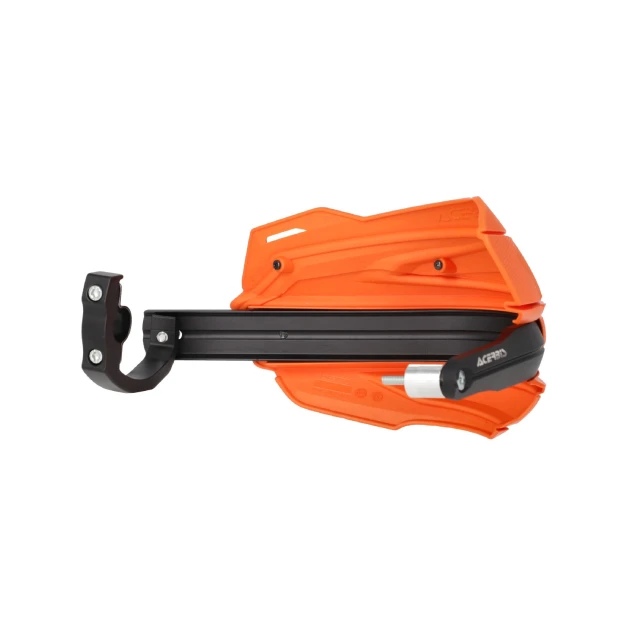

STRONG 35 MM ANTICORODAL C-SECTION

The structural core is a 35 mm ANTICORODAL aluminium C-section.

The 35 mm specification describes the C-section profile rather than the diameter of a round bar. This aluminium structure runs around the lever area and forms the primary mechanical protection of the handguard.

It helps protect:

• brake lever

• clutch lever

• surrounding control assemblies

• exposed handlebar area

A closed handguard provides substantially more structural support than a plastic shield alone, although no handguard can guarantee that motorcycle components will remain undamaged in every crash or heavy impact.

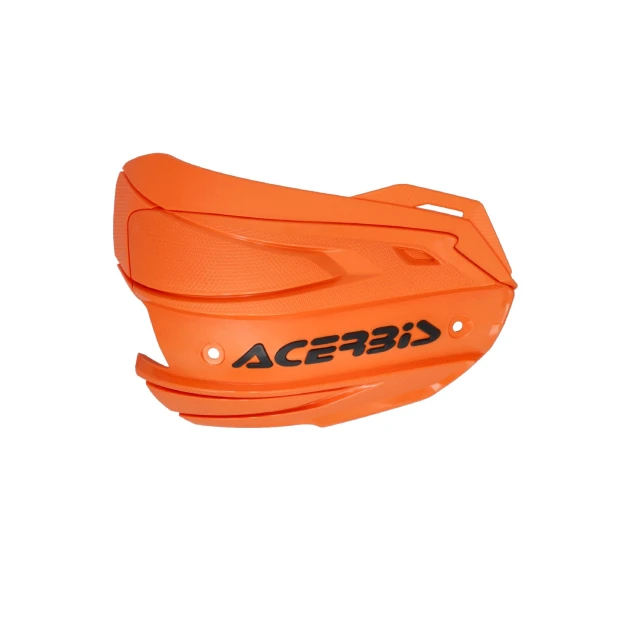

LARGE HAND SHIELD

A sizeable plastic cover is mounted to the aluminium backbone to provide additional coverage directly in front of the hands.

It helps deflect:

• airflow

• branches and vegetation

• flying stones

• mud

• water and road debris

The larger protective area is useful not only off-road but also on longer paved sections, where it reduces direct airflow reaching the hands.

It should not be regarded as a thermal winter cover and does not replace suitable cold-weather gloves or heated grips.

UPPER EXTENSIONS FOR EXTRA COVERAGE

The upper area of the shield incorporates extensions that increase the protected surface.

They provide additional coverage from:

• airflow

• dust

• small flying debris

This is useful when travelling long distances, riding dusty tracks or following other motorcycles on unpaved roads.

FLEXIBLE LOWER AREA FOR ACTIVE RIDING

CRF300L riders frequently spend time standing on the footpegs, particularly once the terrain becomes rougher.

As the rider moves forward and around the motorcycle, the knee can approach the handguard area. Acerbis therefore uses a more flexible lower section of the plastic shield, designed to yield more readily during accidental knee contact than a completely rigid edge.

This can be useful during:

• standing riding

• steep climbs

• rough trails

• active body positioning

• technical off-road sections

ROAD, GRAVEL AND TRAIL USE

ADV Type B handguards are not limited to one particular riding discipline. Their design suits the versatile nature of the Honda CRF300L.

Typical uses include:

• commuting

• touring

• Adventure trips

• gravel roads

• forest and unpaved tracks

• light off-road riding

• more demanding trail use

Acerbis describes the system as intended for Adventure and light off-road use while also being structurally strong enough for hard enduro, cross-country and maxi-enduro applications.

MODEL-SPECIFIC FOR HONDA CRF300L

ADV Type B is specifically adapted to the Honda CRF300L, avoiding the compromises of a completely universal handguard mounting solution.

Current Acerbis compatibility data lists:

• Honda CRF300L 2021

• Honda CRF300L 2022

• Honda CRF300L 2023

• Honda CRF300L 2024

• Honda CRF300L 2025

• Honda CRF300L 2026

If the motorcycle has aftermarket handlebars, levers or modified controls, compatibility should be checked individually.

More motorcycle handguards are available from MEFO.

PROTECTION AROUND THE CONTROL ASSEMBLIES

Acerbis does not focus solely on the ends of the brake and clutch levers. The handguard design also provides coverage around the master-cylinder and control assemblies.

This can be valuable when riding through vegetation or during a fall where the end of the handlebar may come into contact with the ground or an obstacle.

The large shield also creates an additional barrier between the rider’s hand and the surrounding environment on narrow trails.

SIMPLIFIED ASSEMBLY

Acerbis describes the ADV construction as offering simplified assembly compared with the Endurance handguard range, with greater use of standardised components.

After installation, always check:

• unrestricted brake-lever travel

• unrestricted clutch-lever travel

• free throttle return

• clearance from hoses and wiring

• full steering movement from lock to lock

• clearance from any additional motorcycle equipment

Handguards must never interfere with safe operation of the motorcycle.

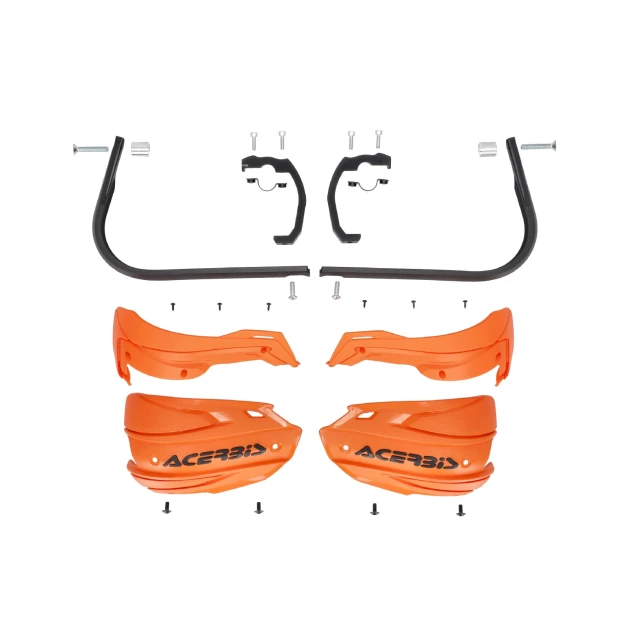

ALUMINIUM, STEEL AND PLASTIC CONSTRUCTION

Acerbis specifies the following material composition:

• 67% aluminium

• 10% steel

• 23% plastic

Aluminium forms the main structural C-section, steel is used for structural and mounting components, and plastic creates the large protective hand shield.

The handguards are made in Italy.

MAIN FEATURES

• specifically designed for Honda CRF300L

• compatible with model years 2021–2026

• Acerbis ADV Type B

• closed wrap-around construction

• strong 35 mm ANTICORODAL C-section

• protects brake and clutch levers

• coverage around control assemblies

• large plastic hand shield

• upper extensions for increased coverage

• flexible lower section for accidental knee contact

• protection from wind, branches, stones and mud

• suitable for touring, Adventure and off-road riding

• simplified assembly compared with Endurance

• 67% aluminium, 10% steel, 23% plastic

• made in Italy

PROTECTION FOR A CRF300L THAT GOES BEYOND THE ROAD

Acerbis ADV Type B matches the versatile character of the Honda CRF300L. On paved roads, the large shield provides additional protection from airflow; on gravel and trails it helps deflect mud, stones and vegetation, while the aluminium wrap-around backbone adds structural protection around the levers.

It is a practical solution for riders who use the CRF300L as a true dual-sport motorcycle – for everyday riding, longer trips and routes that continue beyond the tarmac.
