Acerbis ADV Type O handguards for Suzuki DR-Z4S – closed aluminium-reinforced protection

The Acerbis ADV Type O is a robust closed handguard system designed for the Suzuki DR-Z4S. It combines a strong ANTICORODAL aluminium backbone with a large plastic shield, providing both mechanical protection around the brake and clutch levers and additional coverage for the rider's hands against wind, mud, stones, branches and other debris.

ADV Type O is particularly suited to motorcycles that are used beyond paved roads. The wrap-around structure is useful for touring, gravel roads and off-road riding, where the handlebar area may come into contact with obstacles or the ground.

At the heart of the system is a 35 mm ANTICORODAL aluminium C-section bar, creating the main load-bearing structure between the inner mounting point and the bar end.

Closed wrap-around design

Unlike a simple open plastic shield, ADV Type O creates a structural loop around the hand and lever area.

This offers:

• greater mechanical stability,

• protection around the front brake lever,

• protection around the clutch lever,

• coverage around control assemblies,

• protection against branches and debris,

• additional wind protection.

This construction is particularly useful on a dual-purpose motorcycle used both on road and off-road.

35 mm ANTICORODAL C-section

The structural element is a 35 mm C-shaped aluminium profile manufactured from ANTICORODAL alloy.

It forms the main mechanical backbone and helps distribute loads during contact or a fall.

The structure protects the area around the:

• front brake lever,

• clutch lever,

• brake master cylinder,

• clutch controls,

• rider's hand.

Impact loads are therefore not carried solely by the plastic cover.

ANTICORODAL aluminium construction

ANTICORODAL aluminium alloy is suited to structural applications requiring a combination of:

• strength,

• relatively low weight,

• mechanical durability,

• corrosion resistance.

These properties are useful on handguards regularly exposed to:

• water,

• mud,

• dust,

• vibration,

• impacts.

Brake and clutch lever protection

A key purpose of ADV Type O is to create a barrier in front of the motorcycle's control levers.

During a fall or contact with an obstacle, the levers may be among the first parts exposed to impact.

The wrap-around guard helps protect the:

• brake lever,

• clutch lever,

• lever mounts,

• surrounding control assemblies.

This can be particularly valuable during travel away from workshops or spare parts.

Wind protection

The large plastic shield forms an aerodynamic barrier ahead of the rider's hands.

It helps reduce direct airflow over the:

• fingers,

• back of the hand,

• levers,

• controls.

This is useful during:

• longer road sections,

• cooler weather,

• higher speeds,

• adventure touring.

It does not replace winter gloves or heated grips, but it can reduce direct wind exposure.

Upper shield extension

The upper area is enlarged to create additional coverage.

It helps deflect:

• airflow,

• rain,

• mud,

• dust,

• small stones,

• other debris.

This is useful both on paved roads and away from them.

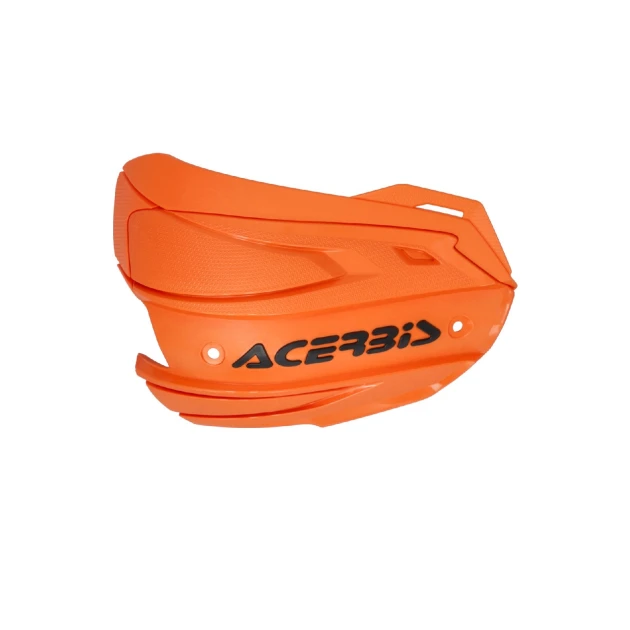

Large plastic cover

The aluminium backbone primarily provides structural protection, while the plastic shield creates a much larger coverage area.

It helps protect against:

• branches,

• stones,

• dirt,

• mud,

• water,

• dust,

• wind.

When riding behind another motorcycle, it can also intercept some debris thrown from the motorcycle ahead.

Flexible lower section

The lower part of the shield is designed with increased flexibility.

During active standing riding, the rider's knee may move close to the handguard.

A more flexible lower section helps make accidental knee contact less harsh.

Strength where required, flexibility where useful

The different components perform different functions.

The aluminium C-section provides:

• strength,

• structural rigidity,

• support,

• lever protection.

The plastic cover provides:

• increased coverage,

• wind shielding,

• debris protection.

The flexible lower section improves comfort during active riding.

Designed for the Suzuki DR-Z4S

The Suzuki DR-Z4S is intended for both road and off-road use, which matches the ADV Type O concept well.

Typical applications include:

• everyday road riding,

• adventure touring,

• gravel roads,

• dirt roads,

• light off-road riding,

• enduro-style travel,

• technical riding away from pavement.

The system therefore provides benefits not only during a fall but also during everyday riding.

Suitable for demanding loads

The ADV Type O construction is designed to cope with the higher loads encountered in disciplines such as:

• enduro,

• hard enduro,

• cross-country,

• maxi-enduro riding.

This does not make the guards indestructible.

A severe impact can still damage the:

• aluminium backbone,

• plastic shield,

• mounting points,

• levers,

• handlebars.

Always inspect the system after a significant fall.

Post-impact inspection

After a crash or hard contact, check:

• aluminium-bar alignment,

• mounting-point security,

• fastener tightness,

• plastic shield condition,

• full lever movement,

• unrestricted throttle return,

• steering clearance.

Even a small change in guard position can affect the controls.

Control-assembly protection

The vulnerable area includes more than just the lever itself.

The handlebar also carries:

• brake master-cylinder components,

• clutch controls,

• reservoirs and lines,

• other control hardware.

The reinforced guard helps create additional protection around these components.

Simplified mounting concept

ADV Type O uses a mounting solution designed to be simpler than the more complex Acerbis Endurance system.

Installation still requires careful attention to:

• bracket position,

• lever clearance,

• guard angle,

• fastener tightening,

• unrestricted operation of all controls.

The application-specific design makes correct positioning easier on the intended motorcycle.

Correct installation is essential

After installation, all motorcycle controls must operate completely freely.

Always check:

• full brake-lever travel,

• full clutch-lever travel,

• correct lever return,

• free throttle movement,

• full steering lock.

The handguard must never interfere with motorcycle control.

Throttle check

Pay particular attention to the right-hand bar end.

After installation:

1. open the throttle,

2. release it,

3. confirm immediate free return,

4. repeat the test at different steering positions.

If the throttle does not return freely, correct the installation before riding.

Full steering-lock check

Turn the handlebars fully in both directions.

The handguards must not contact:

• fuel tank,

• bodywork,

• windscreen,

• dashboard,

• mirrors,

• other accessories.

Cables and hoses must also remain free from excessive tension.

Basic installation procedure

Exact installation follows the application-specific mounting instructions, but the general procedure is:

1. secure the motorcycle,

2. prepare the complete mounting kit,

3. remove required original components,

4. install the inner mounting points,

5. connect the aluminium backbone,

6. secure the bar-end mounting,

7. adjust the guard angle,

8. verify hand and lever clearance,

9. tighten all hardware,

10. check brake, clutch and throttle operation,

11. verify full steering movement.

Recheck after initial use

After the first rides, inspect:

• mounting-hardware tightness,

• guard position,

• any unwanted rotation,

• mounting-point play.

Repeat this inspection periodically and after any fall.

Mud and water protection

The large shield is useful in wet conditions as well.

It can help deflect:

• splashing water,

• mud,

• spray,

• debris from motorcycles ahead.

This reduces direct exposure of the hands and gloves.

Branch protection

On narrow trails, handlebars can come into contact with vegetation.

The wrap-around guard creates a barrier ahead of the:

• fingers,

• knuckles,

• control levers.

This is one of the main advantages of a closed handguard away from paved roads.

Compatibility

This version is intended for:

• Suzuki DR-Z4S 2025,

• Suzuki DR-Z4S 2026.

Always verify compatibility in the product fitment table.

Aftermarket handlebars, levers, risers, mirrors or other accessories may affect installation.

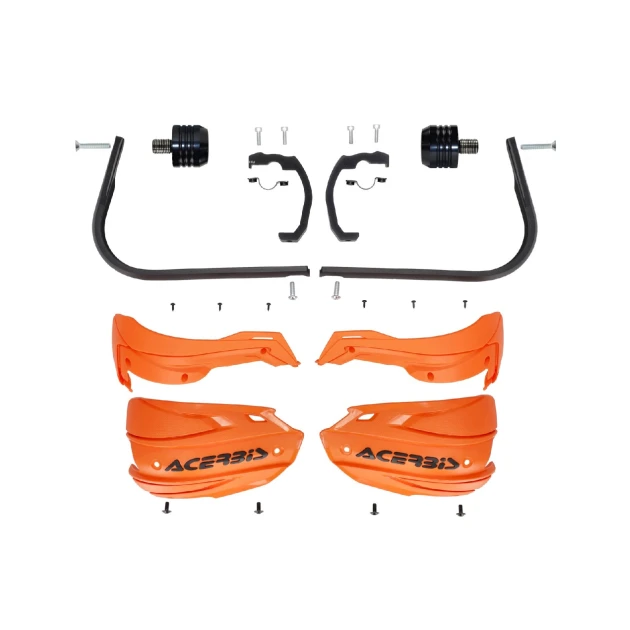

Materials

The construction combines:

• ANTICORODAL aluminium reinforcement,

• durable plastic shield,

• metal mounting hardware,

• technical polymer components.

Each material is used where specific properties such as strength, flexibility, low weight or coverage are required.

Made in Italy

The Acerbis ADV Type O is made in Italy.

Its design combines a reinforced aluminium backbone, large plastic cover and application-specific mounting for adventure and off-road use.

Technical features

• closed wrap-around handguards,

• Acerbis ADV Type O,

• Suzuki DR-Z4S application,

• ANTICORODAL aluminium reinforcement,

• 35 mm C-section backbone,

• large plastic shield,

• flexible lower section,

• upper shield extension,

• brake-lever protection,

• clutch-lever protection,

• protection around control assemblies,

• wind protection,

• mud and debris coverage,

• suitable for road and off-road use,

• construction designed for demanding mechanical loads,

• simplified mounting concept,

• application-specific fitment,

• made in Italy.

Main benefits

• closed design with strong aluminium reinforcement,

• protection for hands and control levers,

• robust 35 mm ANTICORODAL C-section,

• large shield against wind and debris,

• upper extension for increased coverage,

• flexible lower shield area,

• coverage around brake and clutch controls,

• suitable for adventure, enduro and touring,

• application-specific for Suzuki DR-Z4S,

• made in Italy.

Protection for the DR-Z4S on and off the road

The Acerbis ADV Type O is more than a plastic wind deflector. Its aluminium backbone creates a true structural loop around the hand and lever area.

On the road, the large shield helps reduce direct wind, rain and debris exposure. Off-road, the reinforced structure provides an additional barrier against branches, stones and ground contact. The flexible lower section supports active riding comfort, while the application-specific mounting system helps position the guards correctly on the Suzuki DR-Z4S.

The result is one integrated system combining hand coverage, lever protection and practical weather shielding for both everyday riding and off-road travel.
