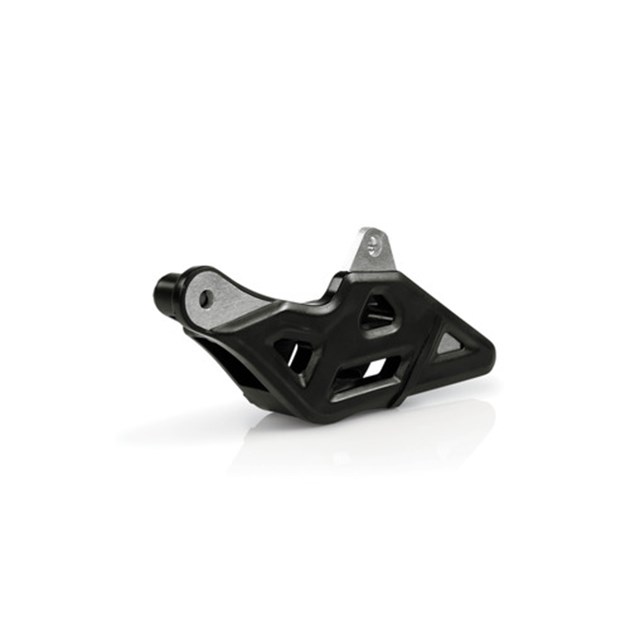

Acerbis rear chain guide with moulded-in metal reinforcement – strengthened OEM-style replacement

The Acerbis rear chain guide is an application-specific replacement for the original guide positioned around the rear sprocket. Its purpose is to keep the drive chain on the correct path, limit unwanted movement and stabilise chain travel at the rear of the motorcycle.

This version features moulded-in metal reinforcement integrated into the guide structure. The reinforcement increases structural rigidity and helps the guide resist deformation and mechanical loads encountered in demanding off-road use.

The main body is manufactured from durable polyamide with high resistance to abrasion caused by the moving chain. Accurate OEM-style geometry allows the correct application to install at the original mounting points without drilling, cutting or motorcycle modification.

Moulded-in metal reinforcement for additional strength

The key feature of this version is the metal reinforcement integrated directly into the guide body.

The metal element helps strengthen the structural section in areas exposed to greater mechanical stress.

It contributes to:

• increased structural rigidity,

• improved resistance to deformation,

• greater mechanical resistance to impacts,

• more stable mounting,

• improved durability in demanding terrain.

The two materials perform different roles: the polyamide provides a lightweight, wear-resistant guide structure while the metal reinforcement strengthens the load-bearing section.

Correct chain guidance around the rear sprocket

The rear guide helps keep the chain correctly positioned as it approaches and leaves the rear sprocket.

Its role becomes particularly important during:

• hard acceleration,

• engine braking,

• jump landings,

• rapid suspension movement,

• deep ruts,

• rocky terrain,

• riding over roots and obstacles.

Under these conditions the chain can move vertically and laterally. The guide limits excessive displacement and helps maintain the intended chain path relative to the rear sprocket.

Stable chain control in demanding terrain

The rear wheel is constantly moving relative to the motorcycle chassis during off-road riding, while the chain is subjected to rapid load changes.

During acceleration, landings and rough-terrain riding, chain movement can become significant.

The rear guide helps:

• limit lateral chain movement,

• stabilise chain travel around the sprocket,

• retain the chain within the intended guide area,

• reduce unwanted contact with surrounding parts.

The guide cannot replace correct chain slack or correct chain alignment.

Durable polyamide construction

The main guide body is manufactured predominantly from polyamide, commonly known as nylon.

This material is well suited to chain-guiding components because it combines:

• high abrasion resistance,

• mechanical strength,

• toughness,

• low weight,

• vibration resistance,

• resistance to repeated mechanical loads.

It is particularly suitable for an environment combining moving-chain contact, impacts, contamination and intensive off-road use.

Resistance to chain abrasion

The chain continuously passes through the guide during riding and gradually wears the contact surfaces.

The guide should therefore be treated as a normal wear component.

Wear rate is affected by factors including:

• chain slack,

• chain and sprocket condition,

• motorcycle power,

• riding style,

• sand and mud contamination,

• terrain,

• maintenance frequency.

Sand, dust and chain lubricant can combine to form an abrasive compound that significantly accelerates wear.

Metal reinforcement does not eliminate normal slider wear

The integrated metal reinforcement strengthens the structural body, but the chain-contact areas remain wear surfaces.

The guide must therefore still be inspected regularly.

Metal reinforcement does not make the guide immune to wear or impact damage.

After a significant impact, inspect:

• the polyamide body,

• metal reinforcement,

• mounting points,

• fasteners,

• chain path.

How to identify a worn guide

Inspect the guide during routine motorcycle cleaning, chain lubrication and major servicing.

Look for:

• deep chain grooves,

• significant material loss,

• cracks,

• broken sections,

• deformation,

• impact damage,

• loose or exposed reinforcement,

• excessive mounting play,

• incorrect chain travel.

Replace the guide when substantial wear or structural damage is found.

A worn guide can affect the complete final drive

As the guiding surfaces wear, the chain gains more freedom for unwanted movement.

This may lead to:

• increased lateral chain movement,

• inconsistent sprocket engagement,

• stronger impacts against the guide,

• additional stress on chain links,

• increased wear elsewhere in the final drive.

Timely replacement helps maintain controlled chain movement.

Inspect the guide when replacing the chain or sprockets

Whenever fitting a new chain or sprockets, inspect all guide and support components.

This includes:

• rear chain guide,

• swingarm chain slider,

• upper and lower chain rollers,

• countershaft sprocket,

• rear sprocket,

• chain adjusters,

• chain alignment,

• chain slack.

A new chain kit should ideally operate with a rear guide that is not heavily worn or damaged.

Correct chain slack supports longer guide life

A chain that is too loose can move excessively and strike the guide more aggressively.

A chain that is too tight increases loading throughout the final drive as the suspension moves.

Both conditions can accelerate guide wear.

Always adjust chain slack according to the motorcycle manufacturer’s specifications.

Sand, mud and stones are normal operating conditions

The rear chain guide is positioned low near the rear sprocket, making it one of the more exposed areas of an off-road motorcycle.

It may regularly encounter:

• mud,

• sand,

• dust,

• stones,

• water,

• roots,

• rut edges.

The combination of durable polyamide and integrated metal reinforcement is therefore particularly useful in this location.

Clean and inspect the guide after demanding rides.

Precise OEM-style fit

The Acerbis guide is designed as a direct replacement for the original part on the specified motorcycle.

The correct application corresponds to:

• original mounting points,

• rear-sprocket position,

• chain-path width,

• swingarm configuration,

• intended chain position.

Installation therefore does not require:

• drilling,

• cutting,

• grinding,

• heating,

• altering the motorcycle structure.

Straightforward installation

On most applications, replacement is a normal maintenance operation.

Basic procedure:

1. secure the motorcycle safely,

2. clean the rear guide area,

3. remove the original guide,

4. inspect the mounting points,

5. install the new guide,

6. use the correct hardware,

7. tighten according to the motorcycle manufacturer’s specification,

8. verify free chain movement,

9. check chain slack.

After installation, the chain must not bind or be forced outside its natural path.

For motocross, enduro and adventure motorcycles

Acerbis chain guides are manufactured for a broad range of specific motorcycles.

Applications are available for:

• KTM,

• Suzuki,

• Honda,

• Husqvarna,

• Kawasaki,

• Yamaha,

• GAS GAS,

• Royal Enfield,

• Triumph,

• CFMOTO.

Adventure applications are also available, including the Yamaha Ténéré 700.

Always verify exact fitment

The guide is not universal.

Applications may differ in:

• mounting-point spacing,

• chain width,

• rear-sprocket position,

• swingarm shape,

• guide construction.

Before ordering, always verify:

• manufacturer,

• model,

• model year,

• specific motorcycle version where applicable.

Use the fitment table on the product page as the deciding reference.

Made in Italy

The guide is manufactured in Italy with an emphasis on accurate application-specific geometry, durable polyamide construction, integrated metal reinforcement and straightforward installation at the original mounting points.

Main benefits

• quality OEM-style replacement for the original rear chain guide,

• moulded-in metal reinforcement for increased structural strength,

• accurate shape for the specified motorcycle,

• helps stabilise the chain around the rear sprocket,

• durable polyamide construction,

• high resistance to chain abrasion,

• increased mechanical resistance for demanding off-road use,

• improved resistance to deformation and impacts,

• fits the original mounting points,

• no motorcycle modification required,

• suitable for motocross, enduro and other off-road applications,

• made in Italy.

Material

• 95% polyamide / nylon,

• 5% other materials.

A reinforced guide for one of the most exposed areas of the motorcycle

The rear chain guide works every time the chain moves and is simultaneously positioned in an area exposed to impacts from the terrain. Combining abrasion-resistant polyamide with moulded-in metal reinforcement therefore makes sense where both controlled chain guidance and structural strength are required.

Regular inspection and timely replacement help maintain the correct chain path, protect the chain-and-sprocket system and prevent a worn guide from becoming a problem for the complete final drive.
