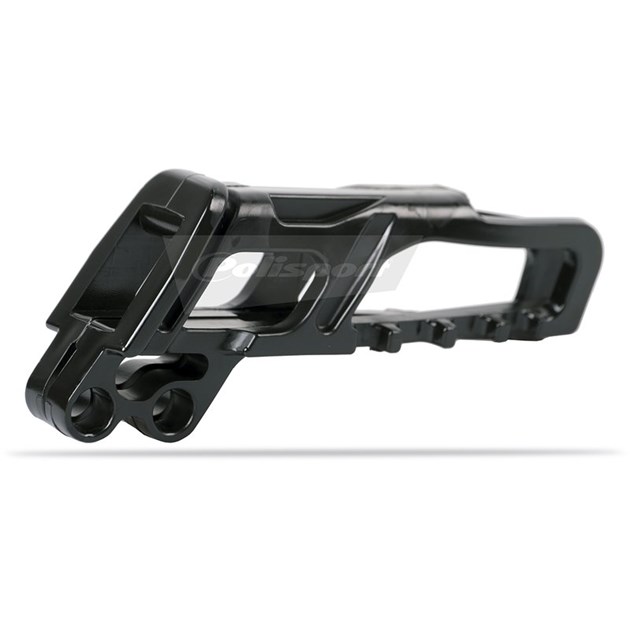

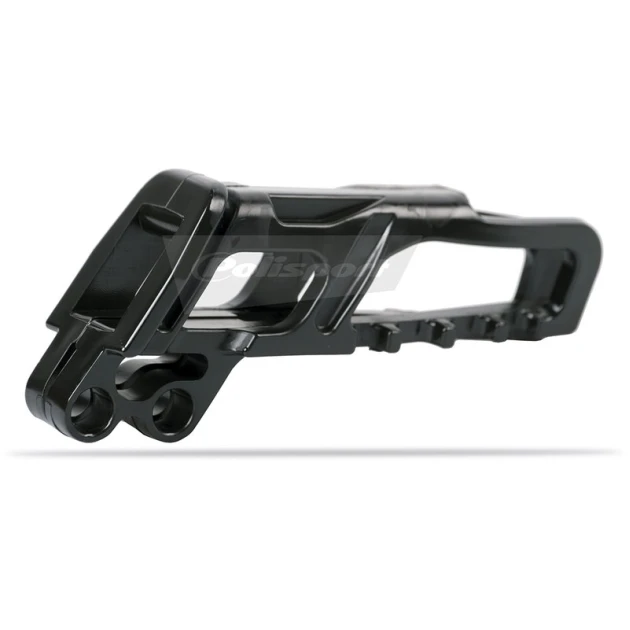

Replacement chain guide slider – economical renewal without replacing the complete guide

The replacement chain guide slider, also known as a wear block or chain guide insert, is designed to replace the wearing surface inside the original rear chain guide cage. If the cage itself remains in good condition and only the sliding section is worn, there is no need to replace the entire assembly – simply fit a new insert and restore the guide to proper working condition.

The slider is the part directly contacted by the chain, which makes it one of the most heavily loaded components in the guide. Continuous chain movement, combined with sand, dust, mud and lubricant in off-road conditions, gradually wears the material away. Regular inspection and timely replacement help protect the original guide cage and maintain stable chain guidance.

The insert is made predominantly from wear-resistant polyamide and is shaped for the specific motorcycle and guide application. The correct version installs into the original cage without cutting, grinding or other modification.

Replace only the part that has actually worn

On chain guides using a replaceable slider, routine wear does not require replacement of the complete assembly.

If the:

• guide cage,

• mounting points,

• fasteners,

• structural side sections

remain undamaged, only the wear insert needs to be renewed.

This provides:

• lower servicing costs,

• quicker repair,

• continued use of the original cage,

• less unnecessary replacement of serviceable components.

It is an efficient maintenance solution for motocross and enduro motorcycles that use a replaceable chain guide slider.

The slider takes most of the wear

The drive chain passes directly over the insert.

As a result, the material gradually:

• abrades,

• becomes thinner,

• develops a chain groove,

• changes its original profile.

This is normal.

The slider is specifically intended to act as a sacrificial wear component, protecting the more expensive structural guide cage from direct chain contact.

Wear-resistant polyamide

The primary material is polyamide, commonly known as nylon.

It is particularly suitable for this type of component because it combines:

• high abrasion resistance,

• mechanical strength,

• toughness,

• relatively low friction,

• low weight,

• resistance to repeated loading.

Polyamide provides a smooth surface over which the chain can run without directly contacting the structural guide cage.

Protects the guide cage

If a worn slider remains in use for too long, the chain may eventually reach the cage itself.

This can result in:

• deep scoring,

• abrasion of the cage structure,

• deformation,

• excessive play,

• weakening of the guide,

• the need to replace the complete assembly.

Replacing the wear insert in time helps prevent a minor service item from developing into a more expensive repair.

Accurate OEM-style shape

The slider is shaped for the specific chain guide and motorcycle.

Its design takes into account:

• chain width,

• guide-path profile,

• dimensions of the original cage,

• mounting arrangement,

• chain position in relation to the rear sprocket.

The correct application therefore requires no:

• cutting,

• drilling,

• grinding,

• heating,

• other modification.

It installs directly into the original location.

Smooth chain guidance

A serviceable slider helps keep the chain correctly positioned as it passes through the rear guide.

This is especially important during:

• hard acceleration,

• engine braking,

• landings,

• rear suspension movement,

• riding over rough terrain.

The guide and slider work together to limit excessive lateral chain movement and stabilise the chain as it approaches the rear sprocket.

The insert cannot compensate for incorrect chain alignment or chain slack.

How to identify a worn slider

Inspect the slider whenever cleaning the motorcycle and during routine chain maintenance.

Replacement should be considered if you find:

• a deep chain groove,

• significant thinning,

• cracks,

• splitting,

• deformation,

• uneven wear,

• chain contact with the cage.

Do not wait until the chain wears completely through the insert.

Once the structural part of the guide begins to be damaged, replacing the slider alone may no longer be sufficient.

Sand and mud accelerate wear

Off-road use exposes the guide to contamination.

Dust, sand and mud can combine with chain lubricant to form an abrasive compound that accelerates material loss.

After riding, it is therefore useful to:

• remove heavy mud deposits,

• clean the guide area,

• inspect the sliding surface,

• confirm that the chain passes freely.

Regular cleaning also makes the true condition of the slider much easier to assess.

Inspect it when replacing the chain and sprockets

Whenever fitting a new chain, countershaft sprocket or rear sprocket, inspect the slider and the remaining chain guidance system.

Check:

• the complete rear chain guide,

• swingarm chain slider,

• upper and lower chain rollers,

• chain adjusters,

• chain alignment,

• countershaft sprocket cover.

A heavily worn insert may compromise the guidance of a new chain.

Correct chain slack affects service life

A chain that is too loose can move excessively through the guide and strike the slider more aggressively.

A chain that is too tight increases loading throughout the final-drive system.

Both conditions can accelerate slider wear.

Always use the chain-slack specification provided by the motorcycle manufacturer.

Quick replacement

On most applications, replacing the insert is a straightforward maintenance task.

Depending on guide construction, the basic procedure is usually to:

1. secure the motorcycle safely,

2. clean the guide,

3. remove the worn insert,

4. inspect the cage,

5. install the new slider,

6. verify correct seating,

7. check free chain movement.

The exact procedure may vary between motorcycle models and guide designs.

When a slider alone is no longer enough

Replacing only the insert is appropriate only if the structural cage remains in good condition.

Replace the complete guide if the cage is:

• cracked,

• heavily worn,

• bent,

• deformed,

• damaged by the chain,

• loose at its mounting points,

• too worn to retain a new insert securely.

A new wear block cannot restore the integrity of a structurally damaged guide.

For a wide range of motorcycles

Replacement slider inserts are produced for specific motorcycle and guide applications.

Versions are available for brands including:

• KTM,

• Suzuki,

• Honda,

• Husqvarna,

• Kawasaki,

• Yamaha,

• GAS GAS,

• Royal Enfield,

• Triumph,

• CFMOTO.

Adventure applications are also available, including the Yamaha Ténéré 700.

Always verify fitment

A chain guide slider is not universal.

Individual inserts may differ in:

• overall dimensions,

• guide width,

• profile,

• retention method,

• length,

• corresponding guide-cage design.

Always check the exact motorcycle model, year and fitment information before ordering.

Main benefits

• replacement wear insert for the original guide cage,

• cost-effective repair without replacing the complete assembly,

• accurate OEM-style shape,

• high abrasion resistance,

• protects the cage from direct chain contact,

• supports stable chain guidance,

• quick and straightforward replacement,

• installs without modification,

• broad range of motorcycle applications.

Material

• 95% polyamide / nylon,

• 5% other materials.

Replace the wear part before the chain damages the complete guide

The slider is deliberately designed to wear during normal use. Regular inspection and timely replacement are therefore considerably more economical than waiting until the chain passes through the insert and starts damaging the structural cage.

If the original cage is still in good condition, a new slider offers a simple, quick and cost-effective way to restore correct chain guidance.
