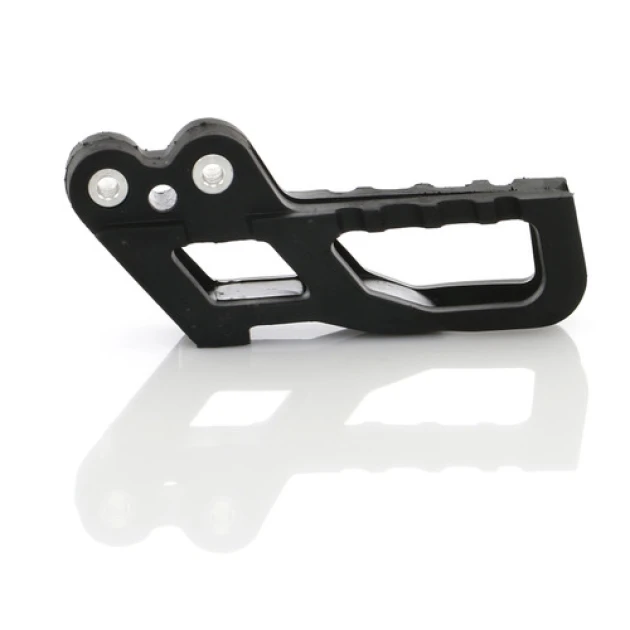

Replacement chain-guide slider insert – quick and cost-effective renewal of a worn chain guide

The replacement chain-guide slider insert, also commonly called a chain-guide slider or wear block, is designed as a replaceable component for the original chain-guide cage. If the cage itself remains undamaged and only the sliding surface has worn, there is no need to replace the complete chain guide – the worn insert can simply be renewed.

The slider is the part that comes into direct contact with the chain and is therefore one of the most heavily loaded components in the guide assembly. Continuous chain movement combined with dust, sand, mud and lubricant gradually wears the sliding surface. Timely replacement helps maintain correct chain guidance while protecting the original cage from unnecessary damage.

The insert is manufactured predominantly from wear-resistant polyamide and shaped specifically for the intended motorcycle application. The correct version installs into the original cage without cutting, grinding or modification.

Replace only the component that actually wears

On chain guides designed with a replaceable slider, the complete assembly does not need to be discarded every time the wear surface reaches its limit.

If the side cage, mounting points and structural components remain in good condition, only the slider needs to be replaced.

This offers several practical advantages:

• lower servicing cost,

• less unnecessary replacement of usable parts,

• faster maintenance,

• reuse of the original cage,

• straightforward restoration of correct guide function.

It is an efficient servicing solution for motorcycles using chain guides with replaceable wear inserts.

The most heavily loaded part of the chain guide

The slider is in direct contact with the drive chain.

During riding, the chain links continually pass across its surface and create friction. In off-road conditions, sand, dust and mud may also enter the contact area and act as abrasive material.

The insert therefore gradually:

• wears,

• develops a chain groove,

• becomes thinner,

• changes its contact profile.

This is normal behaviour for a wear component. The slider is intended to absorb this wear instead of the more expensive cage or other motorcycle parts.

High abrasion resistance

The primary material is polyamide, commonly known as nylon.

It is well suited to this application because it combines:

• high abrasion resistance,

• relatively low friction,

• mechanical strength,

• toughness,

• low weight,

• resistance to repeated loading.

Polyamide provides a smooth running surface for the chain while withstanding continuous mechanical contact.

The composition is 95% polyamide, with the remaining 5% consisting of other materials according to the specific version.

Protects the original guide cage

If a worn slider is left in service for too long, the chain can begin to contact the structural part of the guide.

This may cause:

• cage damage,

• deep scoring,

• deformation,

• excessive play,

• the need to replace the complete guide.

Replacing the slider in time therefore protects not only the chain but also the original cage.

From a maintenance perspective, regularly replacing an inexpensive wear insert is preferable to waiting until the complete guide is damaged.

Accurate OEM-style shape

The insert is designed for a specific chain guide and motorcycle application.

Its shape matches the original component and takes into account:

• chain profile,

• width of the guide path,

• position inside the cage,

• mounting arrangement,

• interface with the remaining guide components.

The correct application therefore installs without additional modification.

There is no need to:

• cut it,

• drill it,

• grind it,

• heat it,

• otherwise reshape it.

Fast replacement

On most applications, replacement is a straightforward service operation.

Where the chain guide is easily accessible, the slider can be changed quickly, making it practical:

• before a race,

• between training sessions,

• when replacing the chain and sprockets,

• during routine maintenance,

• before a longer ride.

Basic procedure:

1. secure the motorcycle safely,

2. clean mud and debris from the guide,

3. remove the worn insert,

4. inspect the cage,

5. fit the new slider,

6. check correct chain guidance,

7. tighten any fasteners to the motorcycle manufacturer’s specification.

After installation, the chain must pass freely through the guide without binding.

When should the slider be replaced?

Inspect the slider regularly when cleaning the motorcycle and whenever servicing the drive chain.

Replacement is appropriate if you find:

• a deep chain groove,

• significant material loss,

• cracks,

• splitting,

• deformation,

• chain contact with the cage,

• uneven wear.

Do not wait until the slider is completely worn through.

Once the chain begins contacting the structural cage, replacing only the insert may no longer be sufficient.

Inspect the cage at the same time

Whenever fitting a new slider, inspect the original cage carefully.

Check for:

• cracks,

• bending,

• deformation,

• enlarged mounting holes,

• chain damage,

• loose fasteners,

• excessive play.

If the cage is mechanically damaged, a new insert alone will not restore correct function.

In this situation, replace the complete chain guide.

Correct chain guidance matters to the complete final drive

The rear chain guide helps maintain chain alignment around the rear sprocket.

A functional slider helps the chain:

• run consistently,

• avoid unnecessary impact with the cage,

• reduce local friction,

• enter and leave the rear sprocket correctly.

The insert cannot compensate for other final-drive problems.

You should also monitor:

• chain slack,

• chain and sprocket condition,

• chain alignment,

• adjusters,

• rollers and other guide components.

Check the slider when replacing the chain and sprockets

A new chain and sprocket set works best when the remaining guiding components are also in good condition.

Whenever servicing the final drive, inspect:

• the rear chain-guide slider,

• the complete chain guide,

• the swingarm chain slider,

• upper and lower rollers,

• countershaft sprocket cover,

• chain adjusters.

A heavily worn slider can place unnecessary stress on a new chain and affect how smoothly it runs.

Sand and mud accelerate wear

Off-road use exposes the slider to contamination.

Sand, dust and mud can combine with chain lubricant to form an abrasive paste that significantly accelerates material loss.

Clean the guide area thoroughly after riding.

Regular cleaning can extend practical slider life and also makes it easier to inspect its actual condition.

Incorrect chain tension increases load

A chain that is too loose can strike the guide more aggressively and move excessively through it.

A chain that is too tight increases forces throughout the final-drive system.

Both conditions can accelerate slider wear.

Always adjust chain slack according to the motorcycle manufacturer’s specification.

When to replace the complete guide instead

Replacing only the slider makes sense only when the remaining guide is in good condition.

Replace the complete guide if:

• the cage is cracked,

• the cage is bent,

• mounting points are damaged,

• the chain has worn into the structural frame,

• excessive play has developed,

• the new slider cannot be retained safely.

In these situations, a new wear block cannot restore the structural integrity of the guide.

For a broad range of motorcycles

Replacement slider inserts are produced for specific motorcycle applications.

Versions are available for brands including:

• KTM,

• Suzuki,

• Honda,

• Husqvarna,

• Kawasaki,

• Yamaha,

• GAS GAS,

• Royal Enfield,

• Triumph,

• CFMOTO.

Adventure-bike applications are also available, including the Yamaha Ténéré 700.

Always verify compatibility

A chain-guide slider is not a universal part.

Applications can differ in:

• chain width,

• cage shape,

• guide-path profile,

• insert length,

• mounting system,

• specific chain-guide design.

Always verify the make, model, year and fitment information before ordering.

Made in Italy

The replacement sliders are manufactured in Italy.

The design focuses on accurate fit, abrasion resistance and straightforward replacement within the original cage without additional modification.

Main benefits

• replacement slider for the original chain-guide cage,

• cost-effective repair without replacing the complete guide,

• protects the cage from chain contact,

• accurate OEM-style shape for the specified model,

• high abrasion resistance,

• predominantly polyamide construction,

• supports smooth chain guidance,

• fast and straightforward replacement,

• no modification required,

• broad fitment range,

• made in Italy.

Material

• 95% polyamide / nylon,

• 5% other materials.

Replace the wear part before it damages the complete guide

The slider is deliberately designed as a consumable part of the chain-guide assembly. Replacing it at the correct time is far more economical than waiting until the chain wears through the plastic and begins damaging the structural cage.

Regular inspection and timely replacement help maintain correct chain guidance, protect the complete chain guide and reduce future maintenance costs.

If the original cage is still in good condition, a new slider is a simple and economical way to return the guide to proper working order.
