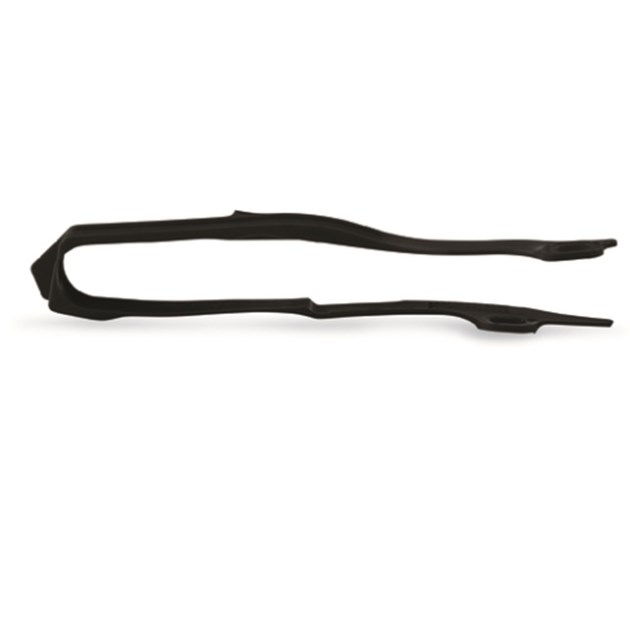

Acerbis swingarm chain slider – precise OEM-style replacement with high wear resistance

The Acerbis swingarm chain slider, also commonly referred to as a front chain guide, chain buffer or countershaft-area chain slider, protects the swingarm from direct contact with the drive chain and helps maintain smooth chain guidance as the rear suspension moves through its travel.

Although it is a relatively small component, it performs an important role within the final-drive system. During riding, the chain continuously moves and changes its angle in relation to the swingarm. Under acceleration, braking and suspension movement it repeatedly contacts the slider surface, which creates a protective layer between the metal chain and the swingarm itself.

Acerbis produces these sliders in an application-specific OEM-style shape so that the correct version installs without cutting, drilling or modifying the motorcycle. The predominantly polyamide construction combines low friction with high mechanical and abrasion resistance, making it particularly suitable for continuous contact with a moving chain.

Protects the swingarm from chain contact

As the rear suspension moves, the relative positions of the countershaft sprocket, swingarm pivot and rear sprocket change.

The chain therefore does not maintain exactly the same angle throughout suspension travel.

Around the front section of the swingarm, it can repeatedly contact the upper or lower surface. Without an appropriate slider, the steel chain would run directly against the swingarm.

The Acerbis slider creates a sacrificial low-friction barrier that helps protect the swingarm against:

• abrasion,

• grooves,

• local material loss,

• damage to surface finishes,

• long-term mechanical wear.

Regular slider inspection is considerably less costly than repairing a damaged swingarm.

Smooth chain guidance

The slider is more than a protective pad.

Its profile helps keep the chain following the intended route as the rear suspension moves and provides a smooth surface over which the chain can slide.

A correctly functioning slider contributes to:

• smoother chain movement,

• reduced unwanted swingarm contact,

• more controlled wear,

• correct operation of the final-drive system.

Overall performance also depends on correct chain slack and the condition of the remaining drive components.

High-wear-resistant polyamide

The primary material is polyamide, commonly referred to as nylon.

This material is particularly suitable for a chain slider because it combines:

• high abrasion resistance,

• mechanical strength,

• toughness,

• relatively low friction,

• resistance to repeated loading,

• low weight.

Polyamide can withstand prolonged chain contact while providing a smoother interface than a metal surface.

The material composition is 95% polyamide, with the remaining 5% consisting of other materials according to the specific application.

Accurate OEM-style shape

The slider is designed as a direct replacement for the original component.

Its shape, mounting-hole position, chain path and interface with the swingarm correspond to the specified motorcycle application.

When the correct version is selected, installation does not require:

• drilling new holes,

• cutting,

• grinding,

• heating,

• modifying the swingarm or slider.

The original mounting points are retained.

Replaceable wear insert on selected versions

Some applications use a separate replaceable wear insert.

This component forms the most heavily loaded contact surface over which the chain runs.

On compatible versions, this design can allow the worn sliding component to be replaced separately rather than replacing the entire assembly.

Exact construction varies by motorcycle model, so the product specification for the individual application should always be checked.

A chain slider is a wear item

Although polyamide is highly resistant to abrasion, the slider is permanently exposed to friction during operation.

It therefore wears gradually.

Wear rate depends on factors such as:

• chain slack,

• motorcycle power,

• condition of the chain and sprockets,

• contamination,

• terrain,

• riding style,

• rear suspension travel,

• maintenance frequency.

In motocross and enduro, sand, mud and dust can become trapped between the chain and slider and act as an abrasive compound, increasing wear.

How to recognise a worn chain slider

Inspect the slider regularly when cleaning the motorcycle and whenever servicing the chain and sprockets.

Look for:

• a deep chain groove,

• significant loss of material,

• cracking,

• deformation,

• loose mounting points,

• wear approaching the swingarm itself.

If the material has become significantly thinner in the contact area, replacement is due.

Do not wait until the chain has worn completely through the slider.

A worn slider can damage the swingarm

Once the wear surface becomes too thin or is worn through, the chain can begin to contact the swingarm directly.

This may result in:

• damage to the surface finish,

• deep scoring,

• local loss of swingarm material,

• expensive swingarm repair or replacement.

The slider should therefore be regarded as an inexpensive sacrificial component designed to protect a far more expensive motorcycle part.

Inspect it when replacing the chain and sprockets

Whenever replacing the chain, countershaft sprocket or rear sprocket, it is good practice to inspect all chain-guiding components at the same time.

Installing a new chain kit while leaving a heavily worn slider in place is not ideal.

The inspection should include:

• the front swingarm slider,

• rear chain guide,

• chain rollers,

• countershaft sprocket cover,

• chain adjusters,

• chain alignment.

Additional protection around the front sprocket area is available through a suitable countershaft sprocket cover.

Correct chain slack helps extend service life

Slider life is closely related to correct chain adjustment.

A chain that is too tight can create excessive forces as the suspension compresses and increase the load on:

• the slider,

• countershaft bearings,

• rear wheel bearings,

• chain,

• sprockets.

A chain that is too loose can move excessively, strike the slider more aggressively and accelerate wear.

Always follow the motorcycle manufacturer’s specified chain-slack procedure.

Sand and mud accelerate wear

Off-road riding commonly leaves a mixture of chain lubricant, dust, sand and mud around the slider.

This mixture can become abrasive and increase wear on the contact surface.

Cleaning the area around the chain and slider after riding is therefore recommended.

Avoid using sharp tools that could damage the polyamide surface.

Straightforward replacement

The slider is designed as a direct application-specific replacement.

On most motorcycles, replacement is a straightforward maintenance task and does not require modification of the swingarm.

During installation:

1. secure the motorcycle safely,

2. clean the slider area,

3. remove the original component,

4. inspect the swingarm,

5. position the new slider in the original mounting points,

6. use the correct hardware,

7. tighten according to the motorcycle manufacturer’s specification,

8. check free chain movement.

Also confirm correct chain slack after installation.

For motocross, enduro and adventure motorcycles

Acerbis chain sliders are produced for a broad range of motorcycles.

Applications are available for brands including:

• KTM,

• Suzuki,

• Honda,

• Husqvarna,

• Kawasaki,

• Yamaha,

• GAS GAS,

• Royal Enfield,

• Triumph,

• CFMOTO.

The range also includes adventure applications such as the Yamaha Ténéré 700.

Always verify exact compatibility

The chain slider is not a universal component.

Motorcycles differ in:

• swingarm shape,

• mounting-hole position,

• chain dimensions,

• chain-line geometry,

• clearance around the countershaft sprocket.

Always choose the application specified for the exact motorcycle make, model and year.

Check the fitment table on the individual product page before ordering.

Made in Italy

Acerbis chain sliders are manufactured in Italy.

The component is designed as a functional OEM-style replacement with an emphasis on accurate dimensions, straightforward installation and durability under both normal and demanding off-road use.

Main benefits

• direct OEM-style replacement,

• protects the swingarm from chain contact,

• helps guide the chain along the correct path,

• high abrasion resistance,

• predominantly polyamide construction,

• application-specific shape,

• uses the original mounting points,

• no motorcycle modification required,

• replaceable wear insert on selected versions,

• suitable for motocross, enduro and other motorcycles,

• broad fitment range,

• made in Italy.

Material

• 95% polyamide / nylon,

• 5% other materials.

A small component protecting an expensive swingarm

A swingarm chain slider is easy to overlook, yet it is the component separating a moving steel chain from the swingarm itself.

Regular inspection and timely replacement help protect the swingarm, chain kit and correct operation of the complete final drive.

Acerbis provides a precisely shaped replacement for specific motorcycle applications, ready to fit in the original position without unnecessary modification.
